New Mini Size 50W 100W Led Module for High Bay Light

FOB Reference Price:Get Latest Price
$9.50 - $11.50 / Sets | 100 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Input Voltage(V):
48V DC
Lamp Luminous Flux(lm):
6500
Working Temperature(℃):
-35 - 65
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP67
Certification:
UL
Place of Origin:
Guangdong, China
Brand Name:
SunshineOpto
Model Number:
SUN-J64H1-3030
Light Source:
LED
Product name:
New Mini Size 50W 100W Led Module for High Bay Light
Lens Size:
Dia 110mm ,height 6.8mm
Beam angle:
120 dergee
PCB size:
Dia 93mm ,T 1.5mm
PCB Circuit:
8 series 8 parallel
Match Leds:
64pcs 3030 leds
Kits:
lens with silicon gasket+pcb welding 3030 leds
Application:
high bay light,warehouse light and so on
Keywords:
round led modules
Item Type:
High Bay Lights
Color Temperature(CCT):
Pure White
CRI (Ra>):
70
LED Light Source:
PH 3030 Led
Warranty(Years):
2
Lamp Power(W):
50
Lamp Luminous Efficiency(lm/w):
130
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month round led modules
Packaging & Delivery
Packaging Details
Cartons
Port
Shenzhen/Yantian
Lead Time :
5~7days
Specification
Product details
Model No
SUN-S64H1-3030
Lens size
Dia 110mm
Lens Beam Angle
120 degree
pcb size
Dia 93mm ,T 1.5mm
pcb circuit
8 series 8 parallel
Application
high bay light ,warehouse light
Product Description

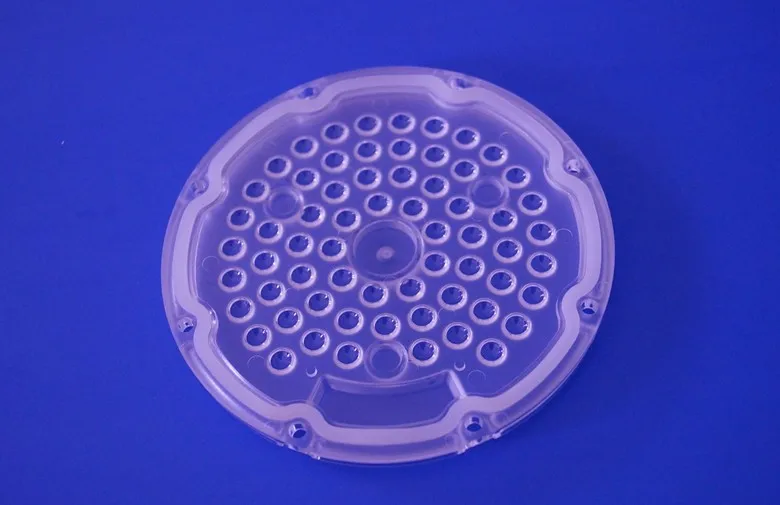

Lens Details

Product combined with Geometric Surface Design,High light efficiency;

On the basic character of SMD 3030 series light, show the application of the Combination of optical and construction.

Waterproof design ,lens with silicon gasket .

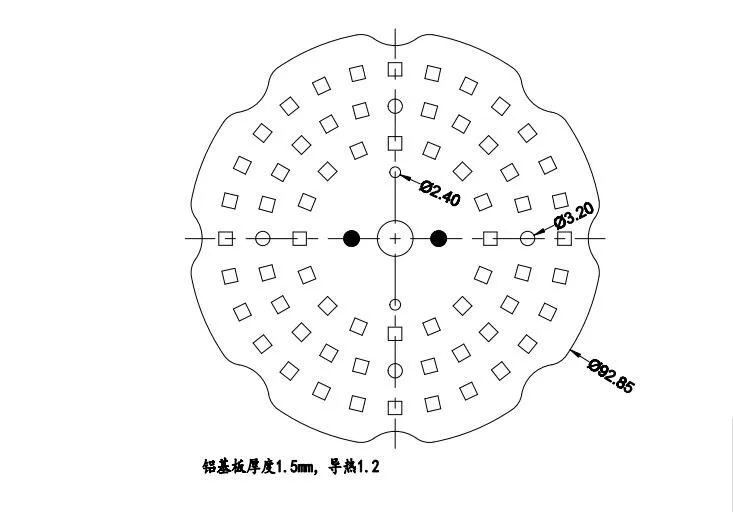

PCB Details


PCB circuit : 8 series 8 parallel ,for 3030 leds .

Dia 93mm ,thickness 1.5mm ,

Optics Report


Lens ( 120 degree)Optics Report

The lens has high light transmittance and is not easy to yellow.

90/TYPE3-M degree
60/90/TYPE3-M degree
90,80X150 degree
90,130 ,TYPE3 degree
for smd 5050 leds
for smd 3030 leds
for smd 3030 leds
for smd 3030/5050 leds
Applications
Certifications
Company Information
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
